Maxxum Series


Maxxum series tractors deliver the versatility and productivity your operation demands from fieldwork to loader work. A Hardworking, Versatile Machine That You Can Rely On. Case IH Maxxum series tractors combine efficient power with operator convenience. Powered by FPT engines, these multipurpose workhorse tractors deliver increased productivity, performance and fuel efficiency to keep your operation running smoothly.


  • Maxxum 115- The Maxxum series 115 tractor features a 4-cylinder, 4.5-L engine, delivering up to 145 engine hp and 95 PTO hp.
  • Maxxum 125- The Maxxum series 125 tractor features a 4-cylinder, 4.5-L engine, delivering up to 155 engine hp and 105 PTO hp.
  • Maxxum 135- The Maxxum series 135 tractor features a 4-cylinder, 4.5-L engine, delivering up to 175 engine hp and 125 PTO hp.
  • Maxxum 145- The Maxxum series 145 tractor features a 4-cylinder, 4.5-L engine, delivering up to 175 engine hp and 120 PTO hp.
  • Maxxum 150- The 6-cylinder, 6.7-L Maxxum series 150 tractor is the highest-horsepower Maxxum tractor, featuring a longer wheelbase and an improved turning radius plus additional lighting for nighttime operations.
  • ENGINE: Powered by FPT with proven Selective Catalytic Reduction (SCR) emission technology, Maxxum tractors deliver the efficient power needed to handle the multiple tasks of livestock and row crop operations, specialty crop production or roadside mowing.

  • Turbocharged 4.5-L, 4-cylinder or 6.7-L, 6-cylinder aftercooled engines generate 116- to 145-rated horsepower (95 to 125 PTO horsepower). All Maxxum tractors feature the same wheelbase to help maintain stability and ride quality without sacrificing turn radius.
  • The latest fuel-injection technology offers several advantages, including faster throttle response, improved power performance, increased efficiency and cleaner emissions.
  • Sometimes in tough conditions such as mobile hydraulic or mobile PTO and transport applications you need a little extra power. All Maxxum tractors help you meet those demands without losing speed and productivity by automatically delivering a boost of up to 24 horsepower on the 4-cylinder models and up to 17 horsepower on the 6-cylinder model.
  • SCR is a simple system that maximizes engine power and treats exhaust outside of the engine to eliminate pollutants. The result: Engines with more power, greater fuel economy, increased durability and reliability and longer service intervals. SCR is the most efficient and powerful diesel emission-control technology available.
  • TRANSMISSION OPTIONS: Customize Your Maxxum Tractor to Meet Your Needs. Choose from Maxxum ActiveDrive 4, Maxxum MultiController ActiveDrive 8 or Maxxum CVXDrive configurations to best suit the way you plan to use your Maxxum tractor.

    ActiveDrive 4 Semi-Powershift Transmission Option- Featuring 4 powershift gears in 4 ranges, proven 16 or 17speed SPS transmissions are ideal for applications that require less speed variances. The eco-powershift transmission achieves top speeds at lower engine rpm to save fuel during transport applications. An autoshift option allows the tractor to shift within a given range. It’s an excellent way to help reduce operator fatigue during applications with frequent load changes, such as working hilly terrain. The optional creeper is available for MFD and 2WD models. ActiveDrive 4 Semi-Powershift Features:

  • Versatile workhorse with the proven 16x16 semi-powershift transmission
  • Ideal for tasks all across the farm from fieldwork to livestock feeding.
  • Customize with the features and comforts you desire.
  • ActiveDrive 8 Transmission- The new ActiveDrive 8 transmission delivers uninterrupted torque through more working speeds, faster shuttle shifts and simplified shifting. This 24-speed transmission features eight powershift speeds in three electronically shifted ranges. The middle range (B) offers working speeds between 2.4 and 10.7 mph without torque interruptions, making it the ideal range for 90 percent of field applications. ActiveDrive 8 Dual-Clutch Transmission features:

  • New ActiveDrive 8 dual-clutch transmission delivers a wider range of working speeds without torque interruptions.
  • Advanced technology of MultiControl Armrest and MultiFunction Handle places most-frequently used functions in one hand for easy operation.
  • An optional advanced loader joystick allows you to shift gears from the loader joystick.
  • Outstanding choice for long, demanding days in the field, whether planting, baling hay or doing chores around the farmstead.
  • Maxxum CVXDrive Transmission Option- The user-friendly CVXDrive continuously variable transmission provides smooth, seamless speed changes through varying conditions. Featuring the same technology as our high-horsepower Puma, Optum, Magnum and Steiger series tractors, the CVXDrive continuously adjusts to maintain the desired speed under any load. It’s an ideal transmission for loader work, baling hay or roading. The CVXDrive transmission features:

  • Simple-to-operate CVXDrive continuously variable transmission delivers seamless speed changes while maintaining power to the ground.
  • Automatically and continuously finds the most efficient gear ratio and engine speed.
  • Excellent choice for loader work and applications on hilly terrain or with frequent load changes; easy-to-use option for less experienced operators.
  • OPERATORS ENVIRONMENT: Whether you prefer a top-of-the-line, superior operator environment or the basic comforts, Maxxum series tractors let you customize your experience to the level that meets your individual needs.

    Operator's Platform- A large operators platform and fully opening and functional left and right cab doors provide easy access and exit and give you plenty of legroom, storage space and room to maneuver. The single-piece, molded floor features an easy-to-clean covering that helps reduce noise and vibration.

    Active Comfort Seat Package- A full day’s work moves along quicker and more efficiently when you’re comfortable. The Active Comfort Seat holds you in a neutral position, even on rough terrain, for the most comfortable ride possible. Upgrade to a vented and heated seat with deluxe fabric or leather for ultimate comfort.

    MultiControl Armrest- All Maxxum MultiController ActiveDrive 8 and Maxxum CVXDrive models feature the innovative functionality and easy operation of the MultiControl Armrest. The MultiFunction Handle places 85 to 90 percent of the controls you use most in one hand so you can stay focused on your work while reducing stress and fatigue.

    Advanced Loader Joystick- Now you can shift all 24 gears on ActiveDrive 8 or change between programmed speeds on CVXDrive without removing your hand from the loader joystick.

    Wide-open Views- With more than 63 square feet of glass area, the Maxxum SurroundVision cab provides unobstructed views in all directions, including overhead via a high-visibility roof panel. Up front, the cab’s roofline extends beyond the glass to provide shade from the sun. Tinted rear-glass helps remove glare throughout the day.

    Suspension- The optional cab suspension package offers superior comfort on the road and in the field by reducing shock loads transmitted to the tractor by 25 percent. Pair cab suspension with the suspended MFD front-axle option for a best-in-class ride that will help you stay fresh and comfortable through the longest days.

    Radio Option- Take advantage of our quiet Maxxum cabs and catch the latest market report or relax to your favorite tunes. An optional Bluetooth radio lets you bring your own entertainment with you. A built-in radio antenna amplifier helps you stay connected even in the most remote areas.

    PTO, HYDRAULICS & HITCHES: The way implements attach, function and power up is just as important as a tractor’s engine, transmission and cab comforts. Maxxum tractors feature the power and capacity that make it a hardworking versatile machine, plus ease of use that makes for efficient productivity. Front-mount PTO and 3-point hitch options allow maximum flexibility and versatility for special applications. Support every option with rear- and mid-mount hydraulic valves.

    PTO- 540 and 1,000 rpm rear PTO is standard and includes a reversible shaft for fast, easy PTO speed changes.

    Hydraulics-Maxxum tractors provide the hydraulic flow you need to power all kinds of implements and the toughest loader work. Main implement pump max flow capacity:

  • Maxxum ActiveDrive 4- 22.7 gallons per minute fixed displacement; 31.9 gallons per minute optional pressure-flow compensation (PFC); mechanical remotes
  • Maxxum MultiController ActiveDrive 8- 39.6 gallons per minute PFC; 22.7 gallons per minute fixed displacement; available with electronic or mechanical rear remotes
  • Maxxum CVXDrive- 39.6 gallons per minute PFC; available with electronic or mechanical rear remotes
  • Fixed displacement or pressure- flow compensation pumps- Choose the right hydraulic system for your needs. The fixed displacement pump is perfect for simple operations that require less flows. PFC systems are best for operations that require more flow or need continuous flow.
  • Remotes- Further customize your Maxxum tractor by matching the hydraulic remote configuration for the implements and attachments you plan to power. Choose from two to four remotes with adjustable detents. Fully color-coded remotes and in-cab controls simplify hookup.

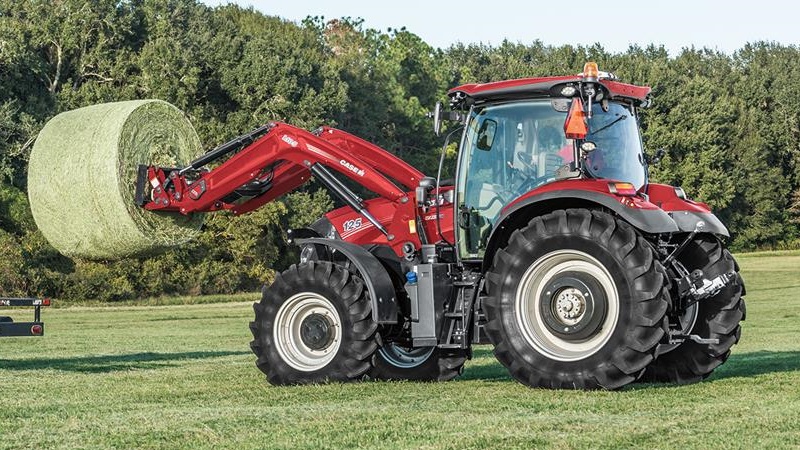

  • Loader Lift Capacity- Maxxum tractors paired with the recommended Case IH L105 loader: 2,932lbs NSL / 5,203 lbs MSL to maximum height at pivot pins. Maxxum 2WD models can be equipped with the L103 loader with up to 3,836 pounds to maximum height at pivot pins.
  • 3 Point Hitches- Standard telescoping stabilizers and available quick-attach claw ends or telescopic lower links with ball-link ends make attaching and hooking up implements fast and easy. Two turnbuckles provide side-to-side leveling of attachments.

  • Lift capacities Mechanical position control and adjustable drop rate make operation easy and precise.
  • 12,787-lb (5,800-kg) lift capacity on the long wheelbase (LWB) Puma 185-240 Tier 4 B/Final models
  • Standard: Two 80 mm lift cylinders 6,900 pounds Optional: Two 90 mm lift cylinders 8,945 pounds Lift capacities as reported by Nebraska Tractor Test Laboratory.
  • Swinging Drawbar- A swinging drawbar makes hooking up implements easier or it can be moved out of the way when not in use.

    AXLE & SUSPENSION OPTIONS: All Maxxum ActiveDrive 4, Maxxum MultiController ActiveDrive 8 or Maxxum CVXDrive models feature heavy-duty front-axle options. Maxxum ActiveDrive 4 models also feature a 2WD option.

    2WD Option- When a 2WD tractor is best-suited to your needs, Maxxum 2WD models deliver all of the power, comfort and features of the Maxxum tractor line at a lower price point. Enhanced maneuverability and a tighter turn radius, plus efficient power to the PTO and hydraulics, help make 2WD non suspended, heavy-duty front axle an excellent option for hay and forage operations, dairy farms, vegetable production, municipalities and small-acreage mixed farms. The Maxxum 2WD model is compatible with the L103 loader for even more flexibility.

    Heavy-duty MFD Option- Multiple front-axle systems suspended or non suspended, and with or without brakes allow you to customize your Maxxum tractor to your operation. A Class 4 heavy-duty MFD front axle is the toughest axle ever offered in a Maxxum series tractor, so you have improved traction and increased power to the ground for even the most demanding applications, such as loader work and mounted front tanks.

    Factory-available Dual Wheels- Available on the Maxxum MultiContoller ActiveDrive 8 and Maxxum CVXDrive models, factory-available dual wheels deliver better flotation, traction and stability for planting and loader work in challenging conditions, such as hills and wet conditions.

    ADVANCED FARMING SYSTEMS (AFS): Integrated Precision Farming Technology Factory-installed AFS components and dealer-installed options on Maxxum tractors offer dependability and convenience and give you the flexibility you need to help ensure you’re ready to begin gathering data as soon as you pull into the field.

    AFS AccuGuide autoguidance- Minimizing skips and overlaps saves on fuel, seed, fertilizer and chemicals. Precisely placing seeds can improve agronomic performance. Achieving year-to-year repeatable accuracy as tight as plus or minus 1 inch becomes reality with AFS AccuGuide autoguidance.

    ISOBUS Functionality- ISOBUS Functionality ISOBUS creates a compatible communication interface that lets your tractor and appropriately compatible implement talk to each other. Maxxum tractors feature two levels of communication.
  • Class 2 ISOBUS allows you to view and control certain functions via display, including:
  • Bale size and shape
  • Density control (when applicable)
  • Tailgate open and close confirmation
  • Class 3 ISOBUS allows for implement automation through the tractor and display, as well as implement control of certain tractor functions, such as speed. Imagine the convenience of letting ISOBUS handle these function:
  • Automated baling cycle
  • Tractor stop
  • Net wrap cycle
  • Tailgate raise and lower
  • AFS Pro 700 Display- In a single screen, the AFS Pro 700 display can control tractor functions and implements such as the Case IH LB4 series large square balers and RB5 round balers, Early Riser planters, Precision Disk™ drills and ISOBUS-compliant implements. Plus, you can use your display with third-party ISOBUS-compliant implements.

    MAINTENANCE & UPTIME: Keeping You Running Day After Day Case IH Maxxum series tractors feature easy maintenance access points and long scheduled maintenance intervals.

    Easy Access- Regular maintenance points are accessible without removing shields. The hood opens without tools. Radiators and coolers fold out for quick, easy cleaning. A wide filler opening makes ground-level fueling easy.

    Uptime- Industry-leading oil service change intervals help keep you in the field longer and Large fuel tanks keep you rolling.

    600-Hour Oil Change Intervals- A 600-hour oil-change interval and low-maintenance fuel system reduce downtime and maximize uptime.

    B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any service issues to keep you going.

    LOADERS & ATTACHMENTS: The Power to Handle Any Loader Work A loader or an attachment turns a tractor into a versatile, powerful workhorse.

    Loaders- The Case IH L105 loader meets the needs of the full line of Maxxum series MFD tractors and features fast, easy mounting and rugged, durable construction. If your choice is a Maxxum 2WD model, the L103 is a perfect match. Work with your Case IH dealer to identify additional loader options, attachments and accessories.

    Mounting- Quick, easy mounting is a hallmark of Case IH loaders. Your Maxxum tractor arrives with all loader mounting brackets, a grill guard, mid-mount valves, in-cab joystick and hose kits.

    Attachments- Your Case IH dealer offers a full line of attachments to help you get the most productivity from your loader. Bucket options, forks, grapples, spikes, grips and cutters each attach quickly and easily.

    Click Here to download a brochure.

    B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any service issues to keep you going.

  • Contact B&S Enterprises your local expert to learn more, compare specs or schedule a demo.
