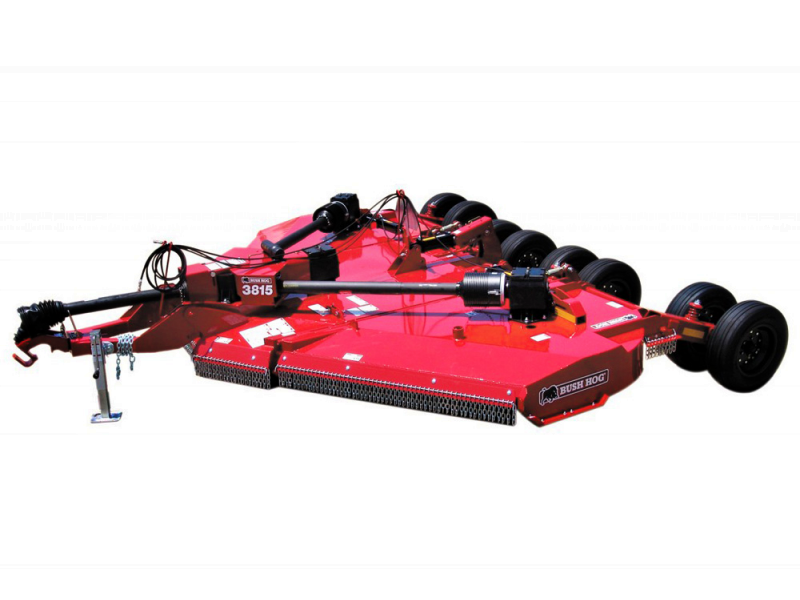

3815 FLEX-WING ROTARY CUTTER

Description

BUSH HOG® 3815 FLEX-WING ROTARY CUTTERS THE HEAVY WEIGHT The 3815 is the heaviest built Bush Hog® Flex-Wing for the toughest cutting conditions. It is recognized by right-of-way contractors and large land owners as the Flex-Wing that can perform over the most rugged terrain. The ease of maintenance features and durability, reliability and performance make the 3815 the highest value for your investment.

PERFORMANCE FEATURE:

  • Wing and center skids are 3/8-inch thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
  • Center section axle spindles are centered on the axle arm for equalized loading of vertical forces.
  • Grease fittings and spring steel bushings at axle pivot points for longer life.
  • Free wing float without movement of the hydraulic cylinder rod is 22° down and 45° up.
  • Improved suspension that absorbs more shock loads at the tires.
  • CONSTRUCTION FEATURES:

  • Industry first — 3-inches O.D. output shaft in cutting gearboxes.
  • Reinforced blade pans for maximum durability in heavy cutting conditions.
  • Wing drivelines are ASAE Cat.5 for use in heavy cutting conditions.
  • Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked
  • E-Z lube drivelines are quick and easy to service. All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points, reducing service times.
  • SAFETY FEATURES:

  • Seven gauge deck plates for stronger decks that are less susceptible to damage.
  • Heavy, durable axle arms withstand the shock and bending loads generated when used on the roughest terrain.
  • Financing Available
  • "CLICK HERE FOR PARTS"

    Click Here to download a brochure.
