Axial-Flow 250 Series Combines


Case IH Axial-Flow 250 series leads the industry in reliability and efficiency. With 2-speed electric shift ground drive transmission, adjustable rotor cage vanes, improved feeder house design and optional AFS Harvest Command combine automation system, Axial-Flow combines are engineered for a high-efficiency harvest. Building on its legacy of high-capacity, high-efficiency combines, Case IH is expanding its combine lineup with new 50 series Axial-Flow combines, which includes new Axial-Flow 250 series combines equipped with optional AFS Harvest Command combine automation system. Designed to optimize grain quality and grain savings, the 250 series combines feature 2-speed electric shift ground drive, adjustable rotor cage vanes and improved feeder house design. Plus, AFS Harvest Command automation simplifies harvesting by sensing and optimizing machine settings regardless of operator skill level.


  • Axial-Flow 7250- With 402 hp at 2100 engine RPMs and a 315-bushel tank, the Axial-Flow 7250 combine delivers superior performance and capacity.
  • Axial-Flow 8250- The Axial-Flow 8250 combine, with 480 hp at 2100 engine RPMs and a 410-bushel tank, provides unmatched horsepower and the performance you've come to expect from Case IH.

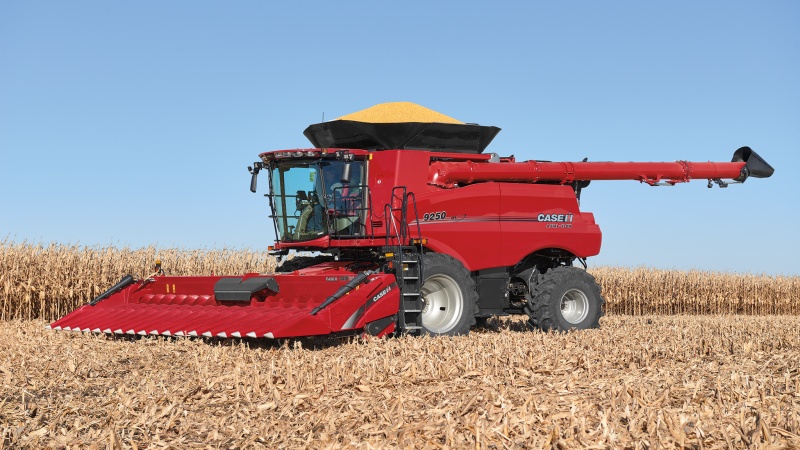

  • Axial-Flow 9250- The Axial-Flow 9250 combine, with 550 hp at 2100 engine RPMs and a 410 bushel-tank, provides ultimate power to handle demanding field conditions and heavy loads.
  • AUTOMATION OPTIONS: With the new 250 series Axial-Flow combines, you can choose from three levels of automation technology so you can pick the right level to fit your operation. Plus, Model Year 2019 combines come with factory-fit telematics and a one-year subscription to AFS Connect command center to monitor and manage your fleet.

  • Standard: Standard on every combine is the Automatic Crop Settings, which allows producers to customize and save preferred combine settings by crop on the Advanced Farming Systems (AFS) Pro 700 display.
  • Feedrate Control: Optional Feedrate Control to more accurately control ground speed based on crop load, engine power and ground speed limits set by the operator..
  • Full Automation: Optional AFS Harvest Command combine automation system proactively senses and optimizes machine performance for you.
  • FEEDING SYSTEM: 250 series combines have a redesigned feeder house for improved durability and reliability in demanding crop conditions. An optional feeder fore/aft face plate control enables adjustments to be made from the cab. A redesigned feeder top shaft drive coupler features a crown spline design for greatly improved durability. A simple, two-piece feeder floor design increases durability and improves crop feeding. Plus, up to 13,500 pounds in lift capacity helps handle even the largest chopping corn head on the market.

    Headers- Improved and expanded header lineup provides the latest in harvesting technology. The following headers are available on the 250 series: Corn, Draper, Flex Auger, Grain and Pickup.

    Feeder House- Optional feeder fore/aft face plate control enables adjustments to be made from the cab.

  • Optional dual, high-capacity lateral tilt.
  • Optional high-capacity feeder drive components (for 4416 and 4418 narrow row chopping corn heads).
  • A redesigned feeder top shaft drive coupler features a crown spline design for greatly improved durability.
  • A simple, two-piece feeder floor design increases durability and improves crop feeding.
  • Feeder Gearbox- Lower feeder gearbox handles the high horsepower requirements of chopping corn heads and larger headers

  • Intermediate feeder gearbox protects the feeder with a dual wet clutch design.
  • Power Plus Continuously Variable Transmission (CVT) combine drive provides continuous variable power, reducing complexity and maintenance.
  • TRANSMISSION:Shift Into the Model for You this new transmission simplifies operation so you can use first gear for harvest and second gear for roading.

    Electric Shift Transmission- New 2-speed electric shift ground drive transmission for increased traction effort, with HI/LO propulsion system to toggle between Hi and Lo ranges during harvest

  • Reduces the need to stop and shift in field or on road.
  • Maximize fuel savings and decrease engine wear.
  • Adjustable wider speed ranges for more power for climbing hills and propulsion through challenging ground conditions.
  • Provides greater torque through a wider speed range without shifting due to increased displacement of pumps and motors.
  • Improves traction and field performance with optional differential lock that is electrically actuated and hydraulically engaged.
  • Closed-loop sensing ensures constant speed control like cruise control in a truck.
  • Maximize your harvest window with robust final drives that create greater durability and quick, seamless performance.
  • Enhanced road mode features improve fuel savings during transport and maximize fuel savings with economy mode and auto-idle RPM to automatically adjust engine RPM.
  • Pump Drives/Separator Drives (PTO)- IImproved PTO gear case design ensures pumps and drives are operating efficiently throughout the entire rpm range

  • Industry-exclusive CVT drive maximizes field efficiency, providing reduced complexity and maintenance.
  • Patented Header to Feeder Ground Speed- Automatically match header speed to ground speed with in-cab electronic variable feeder speed control.

  • Optimize grain savings in downed-corn conditions.
  • Header and feeder automatically adapt to combine speed and put more grain in your tank.
  • THRESHING & SEPARATING: We pioneered single rotor development back in the 1960s. Since then, refinements, enhancements and improvements have led to the pinnacle in rotor performance the AFX rotor. The AFX rotor can be set into many configurations, adapting to both crop and threshing conditions.

    Transition Cone and Rotor Impellers- Patented transition cone vanes and rotor impellers sweep crop from the feeder and gently accelerate it to threshing speed

  • Requires no feed accelerator.
  • Transition cone and impeller draw in approximately 1,100 cubic feet per second through the feeder, providing increased visibility in dusty conditions.
  • AFX Rotor- 30-inch diameter AFX rotor design provides gentle, multiple-pass, grain-on-grain threshing along with centrifugal force separation

  • ST rice rotor is designed to handle tough rice conditions, while providing smoother feeding and improved operational characteristics.
  • ST rotor tube diameter has been reduced, with the addition of taller rasp bars allowing for more of the tough rice straw to work through the entire length of the rotor.
  • Modules- Four modules, each weighing 40 pounds, can be changed within minutes to meet your harvest conditions and type of crop.

  • Three-piece in-feed ramp allows easier accessibility for improved maintenance
  • Rotor Cage- Rotor cage delivers gentle, multiple-pass, grain-on-grain threshing and smoother crop flow

  • Concentric rotor cage provides positive crop control and is perforated to allow 360-degree maximum-crop separation.
  • Rotor Cage Vanes- New, optional, in-cab adjustable rotor cage vanes allow the rotors to be fine-tuned to optimize threshing and separating in varying crop conditions, and efficiently change from one crop to another

  • Standard feature includes a gang of cage vanes that are manually adjustable with an easy turnbuckle.
  • New threshing chamber door seals, which help reduce chaff and dust build-up on the combine frame.
  • Rotor Drive- Reliable belt-driven rotor design

  • Industry-exclusive Power Plus CVT drive provides shaft-driven power to the rotor.
  • CVT drive allows for in-cab rotor reversing and deslugging.
  • CLEANING SYSTEM: High-capacity combines need large high-capacity cleaning systems. Axial-Flow combines match cleaning system capacity to the size of the machine, providing superior productivity, grain sample quality and savings. The patented design of the Cross Flow cleaning system fan delivers consistently clean grain samples no matter the harvest condition. The result is exceptional grain quality, ideal for food-grade crops or crops grown by any producer who demands the most from his/her machine.

    Self-leveling Cleaning System (SLS)- Optimize cleaning efficiency on flat fields or hills with self-leveling sieves up to 12 percent slope each way

  • Axial-Flow 250 series raises the bar with an in-cab, adjustable pre-sieve that allows the operator to make adjustments on the go to maximize grain quality.
  • Cross Flow Fan- After entering the fan, a vortex is created, which super charges the air flow, giving a full-balanced flow across the entire sieve.

  • Air enters the full width of the fan from the top not the sides resulting in superior air flow.
  • Tri-Sweep Tailings Processor- Using three sets of impellers, the processor gently re-threshes and elevates the tailings, returning them back to the active grain pan for final cleaning.

  • This results in higher machine capacity, increased harvest efficiency and improved grain quality.
  • Active Grain Pan- Move grain and material other than grain (MOG) to the cleaning system.

  • Increases efficiency by separating the grain and other material through reciprocating action before reaching the cleaning system.
  • RESIDUE MANAGEMENT: The Case IH residue management system is built to handle the tough residue associated with new crop genetics. This system delivers consistency across the larger header widths used on the Axial-Flow 250 series combines, helps prepare the ground for next year’s crop and can create consistent windrow formations and long straw for baling. From tillage to livestock demands, we offer the widest range of residue management features on the market.

    Rotor discharge deflector- Positioned directly behind the rotor, deflects residue to a central feeding point toward the chopper.

  • Rotor discharge deflectors can be adjusted from in-cab or the right-hand side of the combine by a pin that can be placed into four different positions.
  • Improve windrow formation.
  • Chopper- New offering includes factory-installed X-tra Chop, a small-grains residue package for increased residue chop and sizing.

  • Blades are mounted in a spiral pattern, providing better chop quality.
  • Three separate chopper options to match your requirements.
  • Improved 24-element beater option for added performance and durability.
  • Windrow Chute- Two residue modes (spread and windrow) provide options to meet your residue requirements.

  • In-cab chop-to-swath option available.
  • Hydraulically Driven Spreader- Hydraulically driven residue spreaders are adjustable in-cab for on-the-go speed control.

  • Adjust spreading width manually by moving the dovetail in the center up or down.
  • GRAIN HANDLING: Large grain tanks, longer augers and quick-folding tool-free grain tank extensions are standard on all Axial-Flow combine models resulting in more efficient field operation.

    Clean-grain Elevator- Large clean-grain elevator designed to match greater throughput and capacity.

    High Unload Rates- Spend less time under the unloading auger with high unload rates

  • 7250/8250 unload rate of 4.0 bushels per second.
  • 9250 unload rate of 4.5 bushels per second.
  • Grain Tank- Optional in-cab power-folding grain tank covers and extensions

  • 315 bushels on 7250 (410-bushel option available).
  • 410 bushels on 8250 and 9250 Standard tool-free quick-folding extensions.
  • Unload Auger Options- Dual-cross auger control option (separate cross auger and unload) (standard on 9250)

  • Base fixed 23 feet 6 inches for up to 30-foot headers
  • Fixed 28 feet 9 inches for 35- to 40-foot headers
  • Folding 28 feet 9 inches for 35- to 40-foot headers.
  • Folding 34 feet for up to 45-foot headers.
  • No limit to rear service deck access when auger is folded.
  • Pivoting Spout: Optional pivoting spout increases unload efficiency: helps control the grain stream up to 3 feet all from inside the cab.

    OPERATORS ENVIRONMENT: Unmatched Comfort, Visibility and Control with one of the largest and quietest cabs among the foremost combine manufacturers, the Axial-Flow cab gives you industry-leading glass and unsurpassed sight lines so you can keep an eye on the entire header. With its ergonomic and intuitive design, you get maximized comfort and productivity. Climb up and enjoy - this is what leadership looks like.

    Mobile Office- Standard AM/FM Weather band radio: 3.5 mm Aux jack on radio, 2 speakers

  • Optional AM/FM/CD/Bluetooth radio: 4 speakers, USB connection, 3.5 mm Aux jack on the key switch (iPod/MP3 connection).
  • Cell Phone Holder: designed to display phone screen, allows Bluetooth connection, visibility directly below monitor.
  • Right Hand Console- On 250 series combines, the AFS Pro 700 display is located on the right-hand console on a side rail for ease of viewing.

  • Redesigned multi-function propulsion handle for maximum harvest control.
  • Right hand console controls are grouped by function for ease of use.
  • Cell phone cradle positioned on the front of right-hand console.
  • Lighting- Chrome bezel around lights

  • Standard halogen stadium lighting provides 8 halogen lights.
  • Optional High Intensity Discharge (HID) lights includes 6 HID and 2 halogen cab roof lights for maximum visibility.
  • Optional LED distance lighting available; a total of 4 lights that mount to the mirror brackets on the cab.
  • Instructional Seat / Work Area- Cloth or optional leather seats

  • Flip down backrest operates as work area and has a cup holder.
  • Allows for easy access to power outlet located by the seat.
  • Steering Column & Steering Wheel- Allows for improved movement and increased visibility while seated

  • Steering wheel has an ergonomic design and Is leather wrapped for increased comfort; Standard on Luxury cab option.
  • Leg room: seat travel increased to provide improved leg room and foot space; foot pegs come standard.
  • Portable Electric Refrigerator- The training seat houses a portable electric fridge; Standard on Luxury cab option.

  • Fridge can be removed each night to take home, clean and repack.
  • Fridge can be plugged in to keep cool during transport from home to field.
  • Lid can be strapped to open simultaneously with the training seat for ease of use.
  • Deluxe Cab Trim Option-

  • Under instructor seat storage.
  • Covered B-Posts, rear shelf.
  • Poly vinyl steering wheel.
  • Manual adjust mirrors.
  • Telescopic Steering.
  • Foot rest pedals.
  • Tinted glass with front shade.
  • Luxury Cab Trim Options-

  • Portable fridge.
  • Extra storage at rear.
  • Leather wrapped steering wheel.
  • Left & rear window shades.
  • Electric adjust mirrors.
  • Telescopic Steering.
  • Foot rest pedals.
  • Tinted glass with front shade.
  • Optional right hand shade.
  • Rear window shade; reduces glare from cab window on AFS Pro 700 monitor screen.
  • ADVANCED FARMING SYSTEMS (AFS): Case IH Advanced Farming Systems precision farming solutions integrate technology into your combine to put you in control of your harvest. From new AFS Harvest Command combine automation system to the factory-installed AFS AccuGuide autoguidance system and more, you have the tools to optimize harvest no matter the field conditions or operation skill set. With the 250 series, AFS Connect is standard equipment complete with advanced and file transfer subscriptions, installed at the factory..

    AFS Pro 700 Display- On-the-go yield monitoring and machine/guidance control

  • Compatible with all Case IH equipment.
  • Easily transported between planting and application equipment.
  • Precision Components to Maximize Yields- Eliminate the need to steer in open fields

  • Remove guesswork and ensure full header swaths around the field.
  • Optimize machine productivity and make each pass straight with real-time kinematic accuracy.
  • Control traffic patterns and decrease compaction.
  • Software That Keeps You Informed- Customize charts, graphs and layered maps for further analysis of variety/hybrid, plant population and soil topography

  • Layer yield and moisture maps over aerial photographs and compile additional information with precision farming.
  • Compare productivity and field-to-field yields from year to year.
  • AFS Variety Tracking- Keep accurate records of seed varieties, inputs and performance from planting through harvest

  • Use planting data for up to 30 different seed varieties per field in conjunction with harvest data to easily and accurately analyze variety performance.
  • Auto-Cut Width- Adjust combine cut width when traveling through odd-shaped fields, point rows or other previously harvested areas.

  • GPS receiver provides more accurate area and yield calculations.
  • Automatic Crop Settings ACS- Pick the crop type and let the combine set basic functions,

  • Save custom combine settings to reference at a later date.
  • Automatically slow the cleaning fan for headland turns.
  • MAINTENANCE & UPTIME: Through customer-driven input, Case IH is committed to making your job easier, so you can maximize productivity.

  • Convenient access with fewer belts and chains to adjust and maintain.
  • Exclusive, interactive PC training program helps you better understand the components, operation and adjustment of Axial-Flow combines.
