Steiger Series

Description

The Biggest and Best from Case IH is the Steiger Series tractors. Record-setting fuel efficiency and a proven record of performance and productivity. Take control of every season, every application with the new intuitive, easy-to-use Steiger series tractors with CVXDrive continuously variable transmission. It’s the first continuously variable transmission for an articulated 4WD tractor and delivers the highest horsepower available on the market up to 605 peak horsepower so you can take on year-round farming applications and specialty applications.

CURRENT MODELS:

  • Steiger 370- The Steiger 370 has a narrow frame, providing optimal weight-to-horsepower ratio for row-crop applications. Available configurations: Wheeled Row Crop.
  • Steiger 420- The Steiger 420 features a narrow frame for optimal weight-to-horsepower ratio plus a 12.9 L Tier 4 B/Final engine for greater efficiency. Available in HD Wheeled Row Crop and Rowtrac configurations.
  • Steiger 470- The Steiger 470, with a 12.9 L Tier 4 B/Final engine and maximum 517 horsepower, is built for tough conditions. Available in HD Wheeled Row Crop, Rowtrac, Quadtrac and HD Wheeled Scraper configurations.

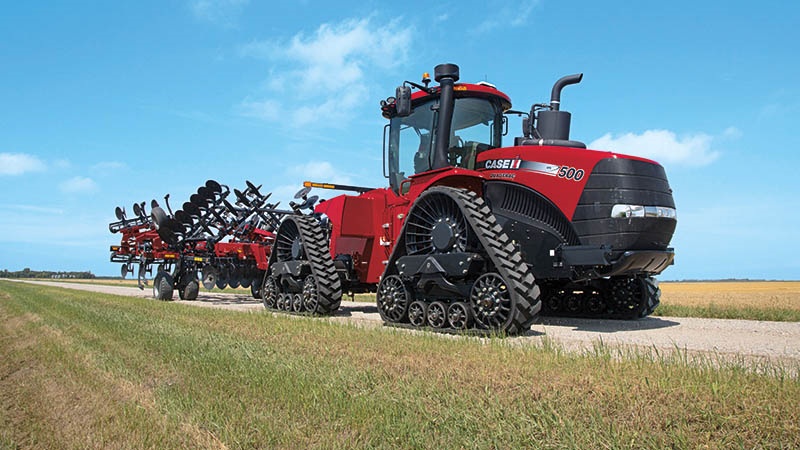

  • Steiger 500- The Steiger 500, with a 12.9 L Tier 4 B/Final engine and a unique design that reduces compaction, offers unmatched fuel efficiency and a proven record of performance. Available configurations: HD Wheeled, Rowtrac, Quadtrac, HD Wheeled Scraper, and Quadtrac Scraper
  • Steiger 540- The Steiger 540 offers industry leading fuel efficiency, power and comfort with a 12.9 L Tier 4 B/Final engine, 605 maximum horsepower and the latest in cab comforts. Available configurations: HD Wheeled, Quadtrac, HD Wheeled Scraper and Quadtrac Scraper.
  • Steiger 580- The Steiger 580, featuring a 12.9 L Tier 4 B/Final engine, is a heavy duty, high horsepower tractor providing the power and fuel efficiency you need. Available configurations: HD Wheeled, Quadtrac, HD Wheeled Scraper and Quadtrac Scraper.
  • Steiger 620- The Steiger 620, with industry leading peak 680 horsepower and a 12.9 L Tier 4 B/Final engine, can handle the largest implements and toughest conditions. Available configurations: HD Wheeled, Quadtrac and HD Wheeled Scraper.
  • MODEL OPTIONS: Choose from 42 configurations from Quadtrac, Rowtrac wheeled, and scraper options to best fit your operation or line of business.

    Wheeled- Steiger wheeled models will keep you ready for any kind of row crop work, in any conditions. With the 4WD force to boost your row crop operations, Steiger tractors are the ideal choice to pull your large planters and strip-till rigs.

  • Longer wheelbase combined with Case IH exclusive high-flotation tires provides more traction with less compaction, even under load.
  • Available on all Steiger models.
  • Rowtrac- All Model Year 2019 Steiger Rowtrac tractors will be fit with track options that allow a maximum travel speed of up to 25 mph for all track widths: 18, 21, 24 and 30 inches.

  • Four points of ground contact deliver more power to the ground with less compaction. This proven design provides a balanced and continuous footprint for maximum traction.
  • Available on current model Steiger 420, 470 and 500.
  • Quadtrac- Industry-leading track technology features four individually driven, positive drive, oscillating tracks. Each track maintains constant contact with the ground for a great ride, optimal ground pressure, superior flotation and better traction.

  • Exclusive positive-drive system delivers continuous power at all times, even in wet or slippery spots.
  • Available on Steiger 470, 500, 540, 580, and 620.
  • Scraper- Steiger tractors are proven workhorses on construction sites, moving earth at the lowest possible cost per yard.

  • Five models with wheeled and track options allow you to match tractor power to your scraper system, whether carry-all or ejector, single, or tandem.
  • Available on Steiger 470, 500, 540, 580, and 620.
  • Track Technology- For 20 years, we’ve led and perfected track technology with our Steiger Quadtrac and Rowtrac tractors. One major advantage Steiger tractors have over any competition is their independent, 4-track design, which provides outstanding traction and flotation, better handling, less rutting and berming, and full power on the ground in curves and turns offering flexibility to operate in a variety of conditions, and make the most of short operating windows.

    ENGINE: Case IH 8.7L and 12.9L FPT engines are engineered and tested in Burr Ridge, IL. Our engines have clocked over 25 million hours on North American farms alone, making them field tested and field proven, providing the reliability you need.

  • Steiger tractors offer up to 682 peak horsepower the most in the industry. And with 10 percent Power Growth capabilities built into all our engines, they can handle even more in difficult conditions without compromising performance.
  • Steiger Quadtrac tractors feature a superior operating range, with rated power at 2100 RPM, peak power at 1900 RPM, and peak torque at 1400 RPM. Case IH tractors can be lugged to a lower engine RPM, producing more torque, than the competition. This means less downshifting or “kicking-to-neutral,” especially in tough field conditions.
  • Case IH has been committed to an SCR-only solution for its unmatched fuel efficiency and power. Plus, it eliminates the need for additional components such as DPF and CEGR. You can enjoy greater productivity since the system allows for 600 hours between oil changes and doesn’t require regeneration.
  • Two stage turbochargers feature a low pressure, cooling circuit system that provides increased power without compromising fuel efficiency. A small turbocharger delivers low-RPM responsiveness and a second, larger one delivers maximum boost at high RPMs. Each has its own intercooler and radiator for added efficiency. (Steiger 540, 580, 620)
  • TRANSMISSION OPTIONS: Now you can choose between the new CVXDrive continuously variable transmission and the time-tested PowerDrive powershift transmission.

    CVXDrive Transmission Option- Dial in the exact speed you need for the job from 3 feet per minute up to 25 mph. No need to use the clutch or shift; the Steiger CVXDrive automatically selects the most efficient transmission range to work at the speed you need. Features familiar controls, including the integrated split-throttle on the MultiControl Armrest found in Magnum, Optum, Puma and Maxxum continuously variable transmission tractors.

    PowerDrive Transmission Option- The 16-speed PowerDrive powershift offers 20 percent faster shifting speed, with reliably smooth shifting that reduces operator fatigue, especially while roading or transporting equipment between fields. Plus, Case IH engineering tests have proven the enhancements to the PowerDrive can save up to 2 percent horsepower - helping you work more productively.

    OPERATORS ENVIRONMENT: Comfort is a priority when you spend long days in the field, and Case IH delivers, thanks to input from our customers. The Steiger Surveyor cab is the largest, most comfortable cab in the industry on a row crop chassis. And it’s so quiet, you can talk on your phone or multitask as needed to run your business.

    4-Way Suspended Cab- Our exclusive 4-Point Cab Suspension with shock-absorbing components at each corner of the cab stabilizes front-to-back, side-to-side and up-and-down motions, giving you a smooth ride regardless of terrain. With reduced jarring and bouncing, you’ll have greater focus on the job and more control over your tractor without fatigue and soreness at the end of a long day.

    LED Lighting- When you have to do nighttime field work, nothing is more important than good lighting. Our new optional LED lighting packages improve visibility during nighttime operation, helping you work more efficiently and reducing operator fatigue and stress.

    Comfortable Seating- Long days in the cab demand seating that’s still comfortable after 10, 12 or even more hours. The Surveyor Cab delivers with a three-position ride control seat, which features an adjustable backrest and lumbar support. The heating and cooling option with slide-out cushion for leg support is ideal for working in seasonal temperature extremes.

    Maximum Visibility- With 68 sq. ft. of glass and a 40-degree, right-hand swivel seat in the cab, Case IH Steiger tractors give you an exclusive 360-degree full field of vision. Forward visibility is optimized by the Steiger’s sloped hood, and rearward visibility provides an unobstructed view to the drawbar.

    Automatic Differential Lock- Steiger tractors now operate more like Magnum tractors with an automatic differential lock, which pulls you through tough spots and reduces in-field compaction. The standard feature automatically engages and disengages, ensuring ease of use. It can also be manually overridden, giving you more control over your tractor.

    Steering System- The Case IH Advanced Steering system, which requires less effort to turn the wheel, now comes standard on all Steiger models. It gives you smooth and precise control of the tractor and implement at all speeds and makes transitioning easier from field to road and road to field. And unlike previous systems that required 4 full turns side to side in field applications, the new system requires only 3.5.

    Multi-Function Handle- Adjust your speed, gears and direction, and much more without even raising your elbow. The Case IH MultiFunction control handle puts 85% of the controls operators use most at your fingertips. Guided by customer input, the MultiFunction handles features new raised backlit buttons. You can tell them apart by touch alone, making it even simpler to switch between functions.

    HYDRAULICS: Work Easier with Hydraulic power that puts you in control. The Steiger Series Tractor hydraulic system uses the latest technology to provide an efficient, productive, user-friendly system.

  • With 113 gallons per minute flowing through up to eight hydraulic remote valves, that’s enough hydraulic flow for even the biggest planters and air seeders in the industry and it doesn't require a separate system or pump, meaning it's easier to monitor and more reliable.

    HITCHES: Hitch lift capacity for any size job because no two jobs are the same, you need to rely on the ability to change things up on the fly.

  • Good thing the three-point hitch lift capacity increases to 20,000 lbs. on Row Crop frame models, allowing for more versatility to handle just about any load.
  • With four different hitches to choose from: standard drawbar, heavy duty drawbar, Class 5 yoke drawbar and Scraper drawbar, obstacles at work are no longer insurmountable. Providing you the power to plow, dig, haul and tract through anything with ease, no matter the conditions or usage.
  • AXLE: Robust Components Provide Better Reliability, Longer Life. Axles to keep the job on track.

  • Steiger tractors feature massive, heavy-duty axles that can carry up to 66,000 pounds of operating weight. That’s the most weight any tractor of its class can handle, making it easier to cover more acres in a day and keeping the job on track.
  • These enormous axles also feature unparalleled braking and hydraulic pressure, as well as lubricated and cooled wet internal brakes. The brakes have been redesigned to offer increased operating pressure for feel and modulation. This equates to built-in strength and durability for lower cost of operation and increased resale value.
  • From moving silage to moving snow and working with the largest implements around, there’s a Steiger configuration built for every job.
  • UNDERCARRIAGE: Hardest working undercarriage in the field.

  • The Steiger Rowtrac undercarriage is unique in its design, utilizing a narrow belt that allows you to get between rows in the field like a surgeon.
  • The design also provides for more stability, featuring a vertical suspension system that uses rubber “donuts” that act like shock absorbers, keeping the suspension from shifting side to side and securing the tracks on the row for even more reliability.
  • The undercarriage is maintenance-free, with on-the-go track self-tensioning and clear bearing caps for easily checking fluid levels, creating a hassle-free experience and making the Steiger Rowtrac undercarriage one that’s designed to work.
  • ADVANCED FARMING SYSTEMS (AFS): Take Control of Your Farm’s Potential: Built directly into your Case IH equipment, AFS components deliver intuitive precision farming solutions that reduce waste and increase overall efficiency all year round. From managing inputs during field preparation, planting and growing, to monitoring yield and moisture at harvest, AFS helps you uncover opportunities that turn potential into profit.

    Display- With single or dual options, the AFS Pro 700 display allows you to seamlessly monitor and control key machine functions across all Case IH equipment. The 10-inch screen is easy-to-read in daylight and adjusts for night visibility. It is fully customizable, with up to six run screens. Plus, it features ISO11783-compliant instrumentation that works with equipment from other manufacturers.

    Guidance & Steering- Steiger tractors offer the industry’s first full autoguidance system in reverse for articulated 4WD tractors, perfect for irregular-shaped fields and point rows. Easy-to-use AFS AccuGuide with Advanced Line Acquisition ensures that each row is identical, eliminating the guesswork of row spacing. That means fewer end-of-row turns and overlaps and the new AccuTurn feature enables hands-free, end-of-row turning to maximize efficiency and productivity. The system also controls traffic patterns and decreases compaction for overlapping passes benefits that bring higher yields.

    Software- AFS software pulls together numerous sources of data about your farm and gives you the information you need to stay abreast of how things are changing. You own the information, so you decide how to use it. Adapt charts, graphs and layered maps for further analysis of variety / hybrid, plant populations and soil topographies. Or create boundaries, autoguidance lines, and compare farming practices and field-to-field yields from year to year.

    Advanced Line Acquisition (ALA)- We’ve improved the way a Steiger tractor engages to a guidance line. ALA not only gets the tractor to the line quicker, but it also reduces overshoot. When planting or seeding, ALA will help you reduce overlap and the amount of missed areas on headland turns. With such precision, your overall farm efficiency will improve.

    MAINTENANCE & UPTIME: Stay Up and Running with Steiger from the frame construction to the heavy-duty powertrain, Case IH Steiger tractors are built for maximum uptime.

    Ground-Level Service- Easy maintenance with ground level access to engine, transmission, hydraulic and axle fluids.

    Maintenance-Free Undercarriage- The Case IH Quadtrac design is maintenance free, with clear caps, self-tensioning track, no grease zerks and debris ejection in mind.

    600-Hour Oil Change Intervals- Industry-leading oil service change intervals help keep you in the field longer.

    Extended Service Life Brakes- Brakes absorb more heat so they last longer and in more extreme conditions.
