Pickup Heads

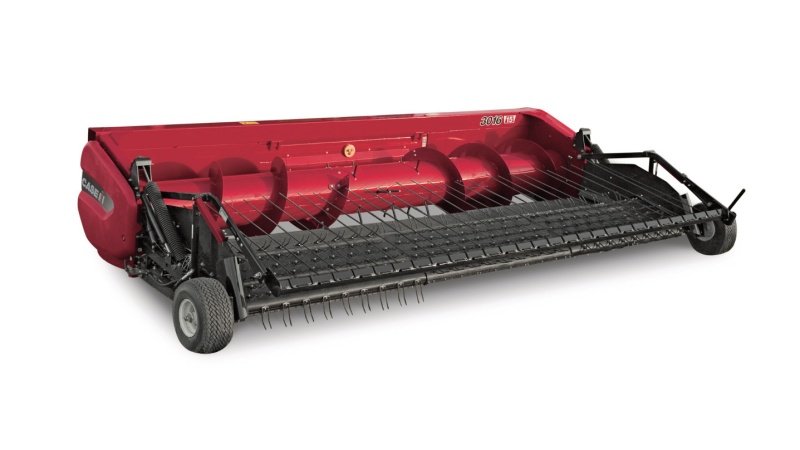

The Case IH pick up head is ideal for small-grain harvesting like cereal, grass seed, and more. Our simple, proven design helps minimize seed loss, while extra picking fingers and adjustable belt speeds allow for increased performance in tough conditions. With picking widths of 11'11" or 14'11.5", 1 or 3 belts, a 26" Auger diameter and 174-187 RPM standard auger speed.


  • 3016- Featuring a center-balanced, shock-absorbing pickup suspension for smooth pickup.

  • An integrated seed dam between the rear picking belt roller and floor prevents grain/header loss with no need for a rubber seal
  • A fully welded mainframe 6 in. x 6 in
  • A heavy-duty, fully welded auger floating 26-in. (660-mm) diameter with deep flighting
  • Double V pattern retractable auger fingers with patented rubber retaining system prevents finger from being ingested into the combine and allows for easy finger replacement.
  • A heavy-duty RC 80 auger drive chain.
  • A rear wind guard in-cab, hydraulic height adjustment with single-handle, manual-pitch adjustment
  • Fixed gauge wheels with height adjustment allows for optimum picking
  • Flexing pickup frame allows up to 12 in. of flex within the picking frame
  • Plastic teeth on the pickup belt for gentle handling of crop
  • A two-stage delivery unit has a pickup belt and transfer belt to optimize pickup and transfer of crop
  • No daily service points required
  • Small Grain Configuration Features-

  • 15-ft. header width, 14-ft.–11.5-in picking width
  • 13-section (5 ft. each) belts for pickup and transfer
  • Grass Seed Special Features-

  • 12-ft. header width, 11-ft.-11 in. picking width
  • One 12-ft. belt for pickup and transfer
  • Optional Features-

  • In-cab hydraulically suspended pickup provides ultimate flotation when combined with the lateral flexing of the picking frame while maintaining consistent ground pressure.
  • Castor gauge wheels optional on both the 12-ft. grass seed configuration and 15-ft. small grain configuration provides enhanced tracking in turns and eliminates ground scuffing while reducing frame stress.
  • Auxiliary front wind guard for use in short crops, which tend to bunch or roll in front of the picking belt.
  • Click Here to download a brochure.

  • Contact B&S Enterprises your local expert to learn more, compare specs or schedule a demo.
  • B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any Sales & Service issues to keep you going.
